Weishaupt Pumpengruppe NW 25 Typ WHI pump 25-7#5
Mit Energiesparpumpe Grundfos UPM3 Auto 25-70 180
Mit Kugelhähnen, Thermometer und Schwerkraftbremse.
Die komplette Baugruppe ist mit einer Wärmedämmung aus EPP ummantelt.

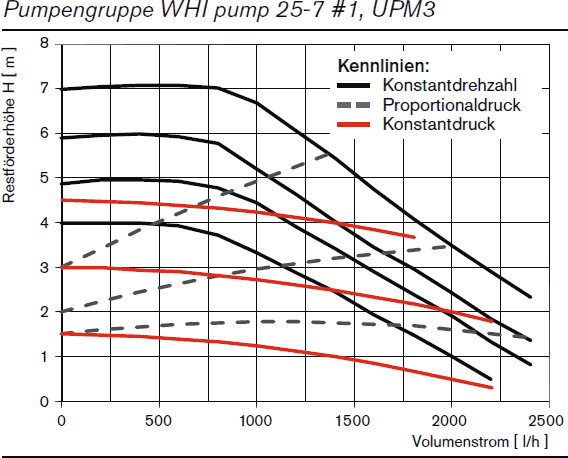

Wahlweise einstellbare Betriebsweise:
Porportionaldruck, Konstantdruck, Konstantdrehzahl, AutoAdapt.
Max. Volumenstrom bei 200 mbar Druckverlust: 2,0 m³/h
Leistung bei
Delta t = 20K: 46 kW
Delta t = 15K: 35 kW
Delta t = 10K: 23 kW

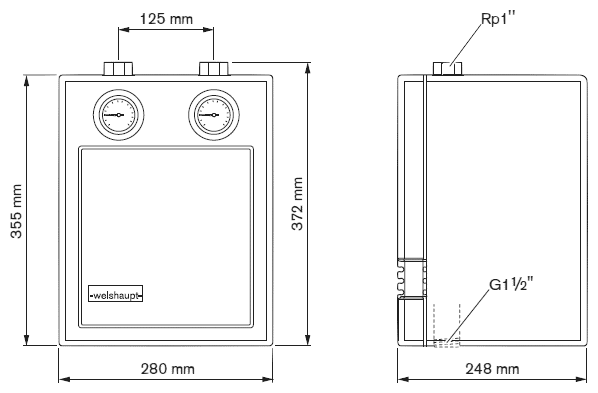

Anschluss oben: Rp 1" IG
Anschluss unten: G 1 1/2" AG
Abmessungen: HxBxT 355 x 280 x 248 mm
